\The HARTING PushPull Variant 4 power connectors are now also available with field wireable, fast and toolless Quick-Lock termination technology.

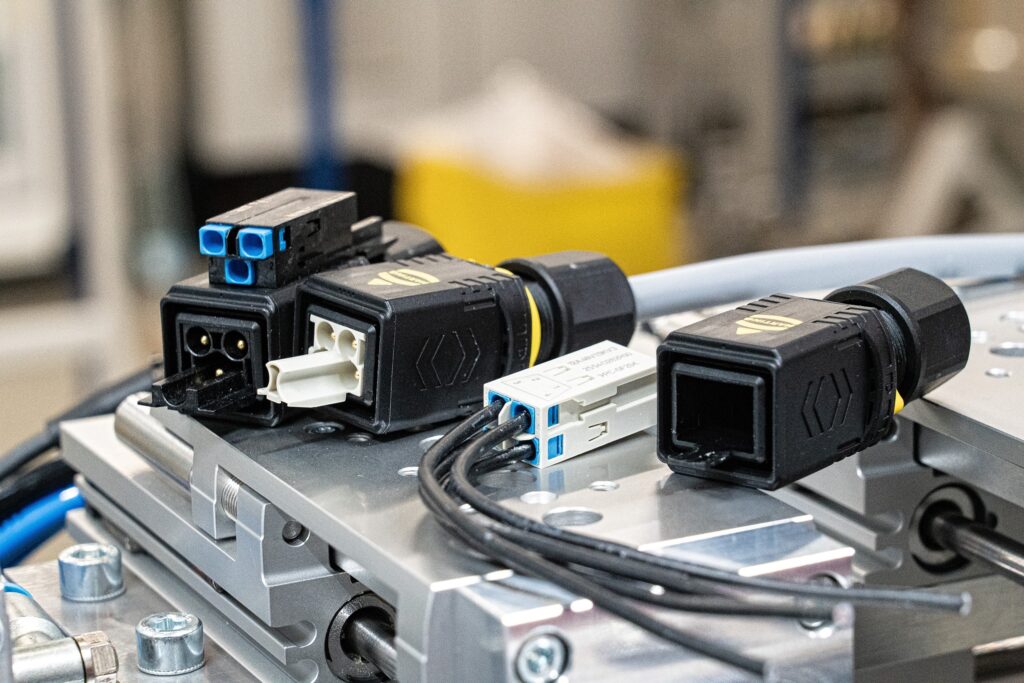

The HARTING Technology Group is proud to
introduce the new PushPull V4 Power QuickLock, an innovative addition to the
proven PushPull connector family. This new product features Han QuickLock
termination technology, enabling fast and tool-less assembly directly on site.

The PushPull V4 Power QuickLock connectors provide a reliable and user-friendly
solution for power supply in compact and robust applications. Thanks to the QuickLock
technology, users benefit from field-assembly without the need for special tools – ideal for
flexible use in automation, machinery, robotics, railway and other industry and outdoor
applications.
Compact, powerful, and safe
The new PushPull V4 Power QuickLock variants are plug-compatible with the existing
PushPull Power connectors with crimp connection, yet offer significant advantages:
 Tool-less assembly with Han QuickLock
 Compact housing with high protection class (IP65/67)
 High current carrying capacity with minimal space requirements
 Innovative PushPull locking mechanism with audible “click”
 Touch-proof protection on both plug and receptacle sides for safe installation
 Four different coding variants without loss of contact
 Various termination technologies for individual device integration
Technical highlights
 Han QuickLock termination technology
 Touch-proof according to IEC DIN EN 60529
 Conductor cross-section: 1.5 – 2.5 mm² flexible
 Available for 48 V DC / 12 A (4-pole) and 250 V AC / 16 A (2-pole + PE)

Immediately available from stock:
 0946 145 3510: PP-V4-CC-P-250V/16A-3p-QL-P-2.5mm²
https://www.harting.com/09461453510
 0946 145 4510: PP-V4-CC-P-48V/12A-4p-QL-P-2.5mm²
https://www.harting.com/09461454510

Versatile applications
The HARTING PushPull connector family is the universal solution for transmitting power,
signals, and data in industrial environments. Easy handling, high assembly density, and
outstanding signal integrity make PushPull the first choice for modern industrial
electronics

About HARTING:
The HARTING Technology Group is a leading global provider of industrial connectivity.
Around 6,100 employees are active across the globe in 42 sales companies, 14
production facilities and seven development sites. HARTING connectivity solutions are
used to transmit data, signal, and power in numerous industrial sectors. Among others, in
transportation, electromobility, renewable energy production, automation and mechanical
engineering. In the 2024/25 business year the family owned and managed company
generated sales of EUR 1.1 billion.
